Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface

ブランド名:	Genyu
MOQ:	100
価格:	$7.15-7.86

詳細情報

製品説明

詳細情報

起源の場所:

広東省、中国

表示サイズ:

7.0インチ

解決:

800x480点

表示モード:

透過型

インタフェース:

パラレル RGB 24 ビット

モジュールの概要:

165*100*3.5mm

アクティブエリア:

153.84x85.632 mm

見る方向:

6時

バックライトタイプ:

3*6チップ白色LED

動作温度:

-20～+70℃

入力電圧:

3.3V

ドライブIC:

TBD

コネクタ:

COG+FPC

LEDの電圧:

9V、120mA

保管温度:

-30〜+80℃

パネルサイズ:

7インチ

ハイライト:

7.0 inch TFT LCD Display Module

800x480 Dots TFT LCD Panel

Parallel RGB 24-bit TFT Display Module

製品説明

Genyu 7.0 inch TFT LCD Display Module

High-quality 7.0 inch transmissive TFT LCD display module with 800x480 resolution and parallel RGB 24-bit interface.

Product Specifications

Specification	Details
Product Name	7.0 inch TFT LCD Display Module
TFT Module Size	165×100×3.5 mm
TFT Active Area	153.84×85.632 mm
Connector	COG+FPC
Resolution	800×480 dots
Viewing Angle	6 O'clock
Interface	Parallel RGB 24-bit
Drive IC	TBD
Backlight Type	3×6 LEDs, parallel
Supply Voltage	3.3V
LED Voltage	9V, 120mA
Operate Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃

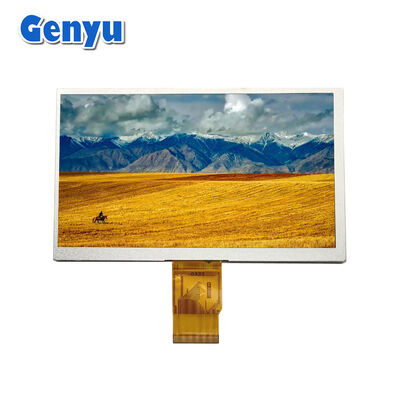

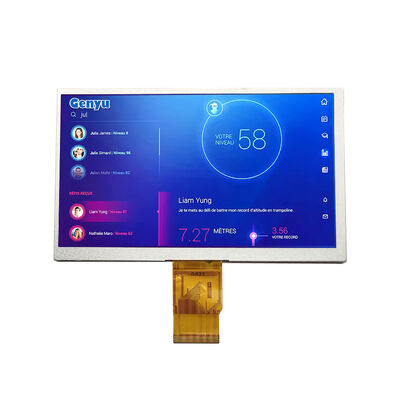

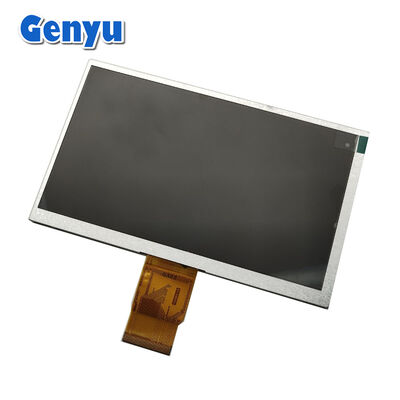

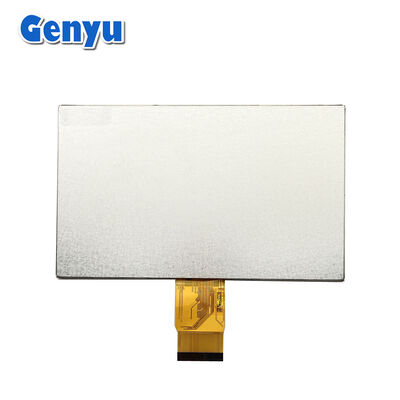

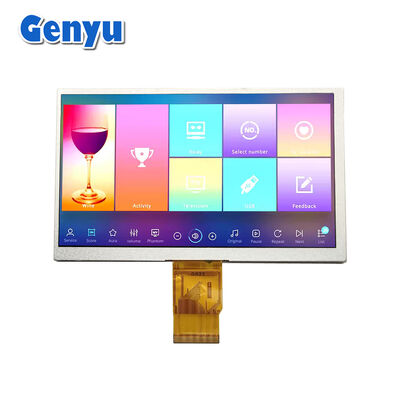

Product Images

Similar TFT Display Products

We develop small to medium size TFT LCD displays ranging from 0.96 inch to 7 inch, including:

0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.77", 1.83", 1.99"
2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 4.45", 5", 5.5", 7"

1.9 inch, 170×320 Dots SPI/MCU Interface

2.4 inch, 240×320 Dots SPI/MCU Interface

2.8 inch, 240×320 Dots SPI/MCU/RGB Interface

3.5 inch, 320×480 Dots SPI/Parallel/MIPI Interface

4.3 inch, 480×272 Dots SPI/Parallel/RGB Interface

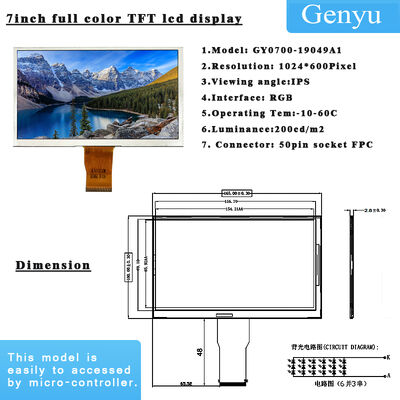

7 inch, 1024×600 Dots TTL/RGB/MIPI/LVDS Interface

Company Information

Genyu Technology (H K) Limited | Shen Zhen Genyu Optical Co.,Ltd

Our Services

All products are shipped as shown with detailed instructions and technical support
Quality assurance with aging tests and 100% visual and electrical inspection
Product upgrade notifications with backward compatibility
12-month warranty period on all products

Packaging & Shipping

Payment Options

T/T, Paypal, Credit Card - Please contact us for payment details

Delivery Methods

DHL/UPS/FedEx: 5-9 working days
TNT/EMS/Postal: 10-15 working days
Postal: 15-30 working days

Packaging

Electrostatic Bag / Anti-static Trays / Plastic Pallet / Air Bubble Film
Suitable carton boxes designed to withstand rough handling

Frequently Asked Questions

Q: Are you a manufactory or trade company?

A: We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

Q: Will you offer a free sample?

A: For first cooperation, samples are charged but amount is returned at mass order stage. For regular cooperation, samples can be free.

Q: What is the delivery time?

A: Sample order: 2-3 weeks. Mass production: 4-6 weeks.

Q: Can you customize the LCD or touch screen?

A: Yes, we provide custom services for LCD displays (backlight brightness, FPC cable) and touch screens (color, shape, cover thickness).

Q: Which applications are your products used for?

A: Embedded systems, Intercom systems, Biometrics, HMI, Smart home, Robotics, Hand-held PDA, Aftermarket automotive, and more.
