2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution

2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution

ブランド名: Genyu
MOQ: 10
価格: R 60,13-72,16
詳細情報
起源の場所:
広東省、中国
表示サイズ:
2.95インチ
モジュールサイズ:
42.2(H)×74.2(V)×2.1(T)mm
アクティブエリア:
36.72(H)×65.28(V)mm
DOTマトリックス:
480x854点
動作温度:
-20~+70℃
保管温度:
-30〜+80℃
バックライトタイプ:
6 チップ白色 LED
ドライバーIC:
ST7701S
インターフェースの種類:
MIPI
コネクタの種類:
FPC、プラグインタイプ
液晶タイプ:
IPS、透過型
視野角:
全て
解決:
480(RGB)×854(ドット)
FPCピン:
40ピン
ディスプレイ技術:
TFT
ハイライト:

2.95 Inch TFT LCD Display Panel

,

MIPI Interface TFT LCD Module

,

480 RGB x 854 Dots LCD Screen

製品説明
RoHS Small LCD Screen 2.95 Inch MIPI TFT Display Module
High-quality 2.95-inch IPS TFT LCD panel with MIPI interface, featuring 480×854 resolution and wide viewing angle for industrial and embedded applications.
Technical Specifications
Parameter Specification
Brand Name Genyu
Model Number GY-TFT030B001
LCD Type IPS, Transmissive
Size 2.95 Inch
Resolution 480 (RGB) × 854 Dots
Viewing Angle All Directions
Outline Dimensions 42.2(H) × 74.2(V) × 2.1(T) mm
Active Area 36.72(H) × 65.28(V) mm
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Drive IC ST7701S (Compatible)
Interface MIPI
Backlight 6 White LEDs
RoHS Compliance Yes

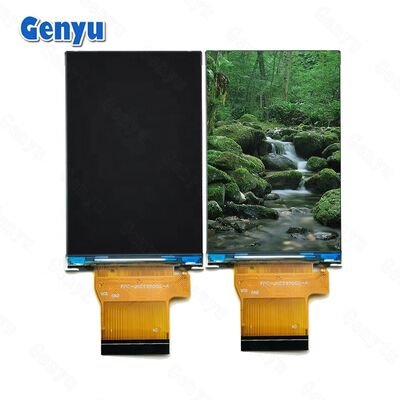

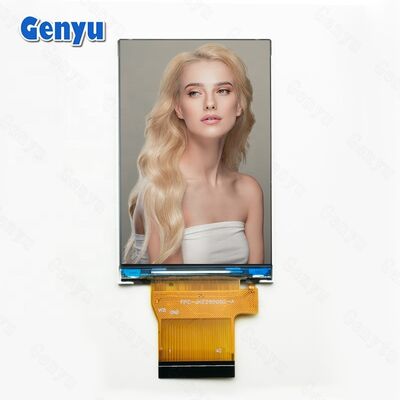

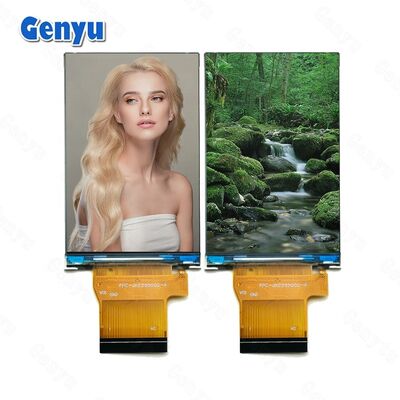

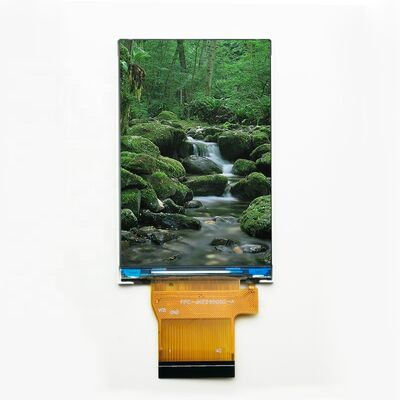

Product Images
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 0 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 1 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 3
Related TFT LCD Display Options
LCD Sizes: 0.96", 1.0", 1.3", 1.44", 1.54", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 4.45", 5.0", 5.5", 7.0", 8.0", 10.1"
Interfaces: SPI, Parallel (8/16/24-bit MCU), RGB, MIPI, and more
Customization: FPC (number of pins), Interface, Backlight, Touch Screen
Resolutions: 80×160, 128×128, 128×160, 240×240, 240×284, 240×320, 320×480, 480×272, 480×800, 800×400, 800×1280, 1024×600 dots, and more
Manufacturing Capabilities
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 4 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 5 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 6
Why Choose Genyu Display?
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 7
  • Own COG, COB, and LCD Backlight Production Lines with Competitive Pricing
  • Solid and Reliable R&D Team Providing Free Technical Support
  • Double 100% Testing and Inspection Before Shipping for Quality Guarantee
  • Fast Lead Times with Cost-Effective Transportation Options
  • 24-Hour After-Sales Service Support
  • 12-Month Standard Product Warranty Period
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 8 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 9 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 10
Packaging & Shipping Information
Payment Methods
T/T, Western Union, PayPal, and other accepted payment methods
Delivery Timeline
Items shipped within 3 working days after payment confirmation
  • DHL/UPS/FedEx: 5-7 working days
  • EMS/POSTNL: 15-20 working days
Packaging Standards
  • Electrostatic Bag / Anti-static Trays / Plastic Pallet / Air Bubble Film
  • Sturdy Carton Boxes for Secure Transportation
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 11
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.
Do you offer free samples?
For first-time cooperation, samples are charged with the amount returned at mass order stage. For regular cooperation, samples can be provided free of charge.
What is your delivery time?
Sample orders: 2-3 weeks. Mass production: 4-6 weeks.
Can you customize LCD or touch screens?
Yes, we provide comprehensive customization services including LCD display backlight brightness, FPC cable, touch panel color, shape, cover thickness, and other specifications according to customer requirements.
What applications are your products used for?
Embedded systems, Intercom systems, Biometric devices, HMI, Smart home applications, Robotics, Hand-held PDAs, Aftermarket automotive, and more.
