| ブランド名: | Genyu |
| MOQ: | 1 |
| 価格: | $3.97-5 |
| Parameter | Specification |
|---|---|
| LCD Size | 0.71 inch |
| Panel Type | TFT |
| Resolution | 160×160 |
| Viewing Direction | ALL |

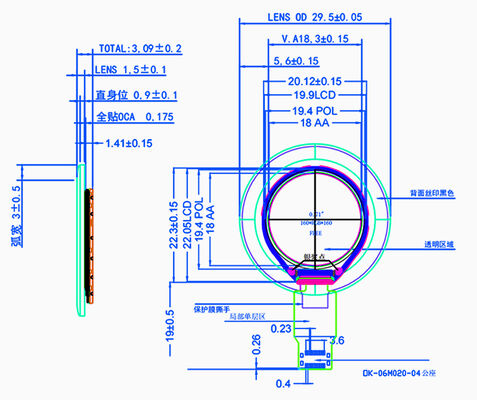

| Module Size | 29.5(H)×29.5(V)×1.5(T) mm |
| Panel Active Area | 18(H)×18(V) mm |
| Interface | RGB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Driver IC | GC9D01 |
| Backlight | 4SPI RGB LED |
| Touch Panel | Without Capacitive Touch |
Established in 2003, Shen Zhen Genyu Optical Co., Ltd. specializes in R&D, production, and sales of LCD displays, OLED, and TFT LCD modules. We offer professional custom LCD screens including TN, HTN, STN, FSTN, VA (BTN), COG, and COB LCD modules.
Our 30,000 square meter facility employs 1,000 staff members, including 36 technicians, 16 developers, and 60 quality control specialists. We maintain a core team of LCD experts, process engineers, R&D engineers, and backlight/FPC specialists.
We design, develop, and produce customized LCD, LCM, backlight, and FPC products according to customer requirements. Current annual production capacity reaches 100 million LCD screens, 30 million LCMs, and 40 million backlights.
Our nearly 6,000 square meter dust-free workshop maintains a 100k cleanliness level. The facility features totally closed transfer windows for material handling and air shower systems at all entrances to effectively remove dust and contaminants from personnel.
Genyu has produced tens of thousands of segment LCDs. We offer TN, STN, HTN, FSTN, and VA/BTN LCD display technologies with complete custom design capabilities.
Available resolutions include: 96×16, 96×24, 122×32, 132×36, 132×96, 128×32, 128×64, 128×96, 160×32, 160×80, 192×64, 240×80, 128×128, 160×160, up to 320×240 dot matrix LCD displays.
Mini size OLED displays available in: 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.3", 1.54", 2.08", 2.3", and 2.4" sizes.
HD full color TFT LCD displays available in: 0.91", 1.0", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7", and 10.1" sizes.
All products undergo strict inspection before packaging to ensure highest quality standards.
Each COG LCD product comes with custom plastic containers. Professional blister containers securely fix each LCD product during transport and storage.
Carton Specifications:
Size: 398 × 331 × 430 mm
Weight: Approximately 17 kg
