| ブランド名: | Genyu |
| MOQ: | 1000個 |
| 価格: | $1.95/pieces 1000-4999 pieces |
1. Brand Name: Genyu
Model Number: GY88128-25
| Display Mode | COB Segment Display Modules |
| PIN Pitch | 2.54 mm |
| Screen Size | 64(W)*41(H)*9(D) mm |
| Module Size | 76(W)x58(H)x19.7(D) mm |
| Screen segment | Segment Custom LCD |
| Control/drive IC | HT1621 |

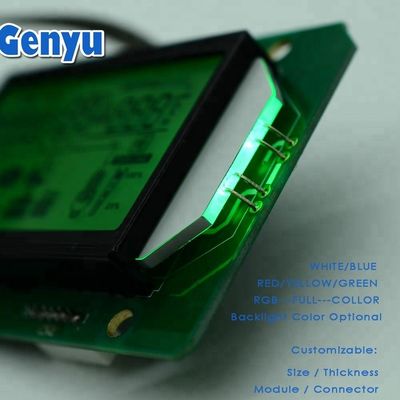

| Display color/BL LED | WHITE /BLUE/ RED /YELLOW /GREEN /RGB FULL COLLOR |
| Viewing Angle | 6 O' clock LCD LED SCREEN |
| Display mode | TN HTN positive transmissive |
| LCD parameter | Duty1/4 Bias1/3 |
| LCD parameter | BL I=30MA |
| LCD parameter | VOP=4.2V |
| Operating Temperature | -10~+60℃ |
| View Area | 40.5 * 20.1mm |
PIN Interface Deails:
| HTN CNI | 1 | DATA | HTN CN2 | 1 | N.C |
| 2 | RW | 2 | FUNCT2 | ||
| 3 | BL | 3 | VDD(5V) | ||
| 4 | CS | 4 | FUNCTION | ||
| 5 | VSS | 5 | ON.P | ||
| 6 | FUNCT2 | 6 | SW2 | ||
| 7 | VDD(5V) | ||||
| 8 | FUNCTION | ||||
| 9 | ON.P | ||||
| 10 | SW2 |
3. The Drawing
Want more?
The intended PIN/FPC Connector Diagram?
LCD layout design according to your screen image?
Contact us, my friend, just click here!

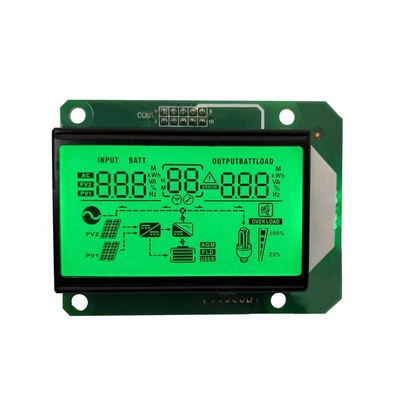

LCD SCREEN FRONT SIDE

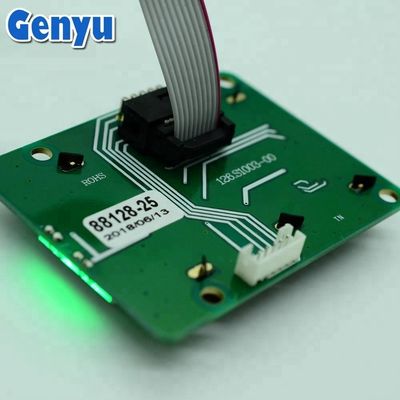

LCD SCREEN BACKSIDE

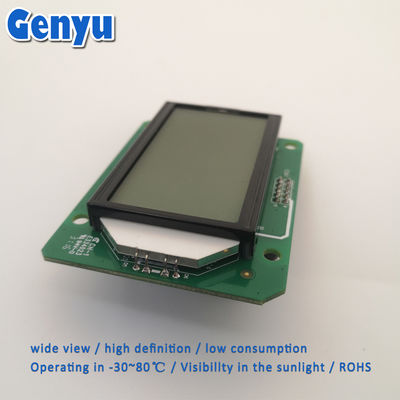

WHEN THE BACKLIGHT NO WORKING

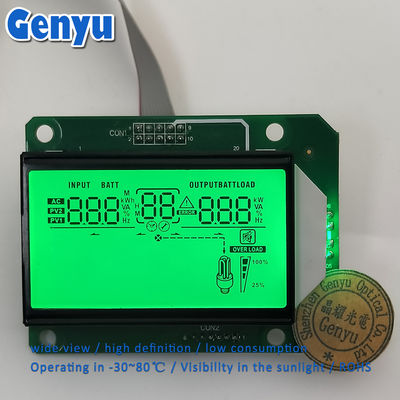

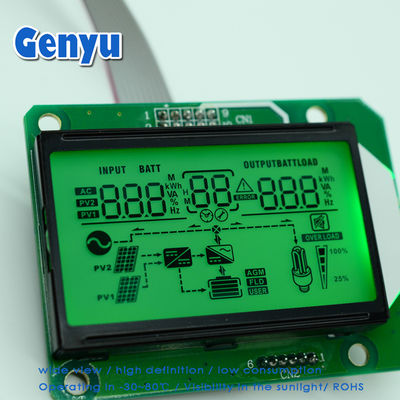

WHEN THE GREEN BACKLIGHT WORKING
More Segment LCD Display Modules for Electric Power/Solar Inverter/UPS Products
Delivery
Items will be shipped within 3 working days after payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
Packaging
1. Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.
2. Three types of Anti-static bag or Bubble bag, Plastic pallet, and Carton box.
3. Package Type: Wrapped in air bubble film and covered by anti-static trays, and then packed in suitable cartons.
The packing is able to withstand rough handling.
